Model: DC-0001
- External Size (m): 7.5x4x3.5
- Internal Size (m): 7x4x2.8
- Air Flow (m3/h): 24000
- Power (kw): 47
- Vehicle Suited: Saloon Car Jeep

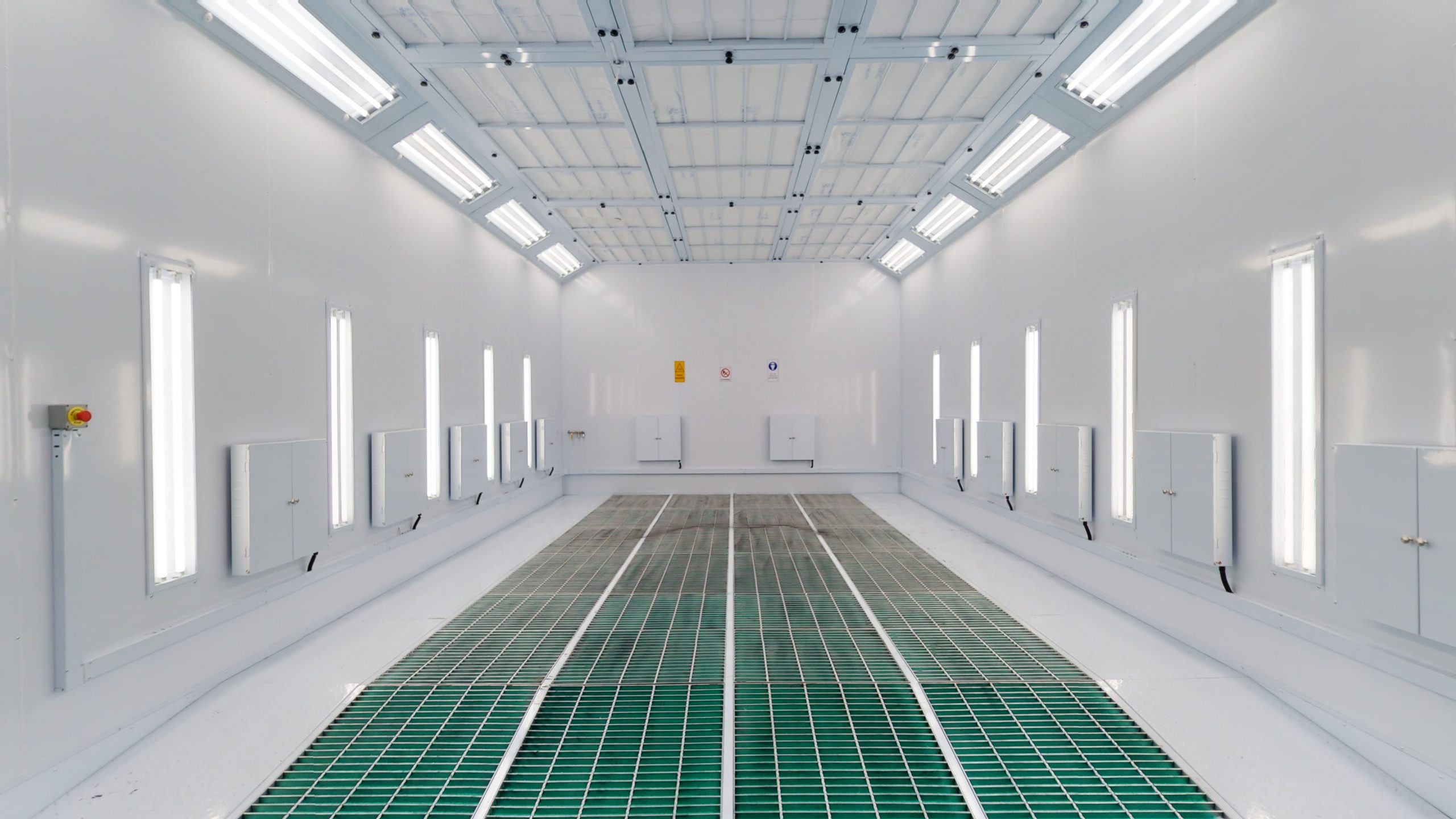

Car Spray - Baking Booth
products & services
Products available
Designed with users in mind, our spray booth is engineered and design with a simple concept of good quality, user friendly, competitive price in mind and built to last.
Custom Design Automotive Spray Booth
Paint mixing room
Industrial Spray Booth
Powder Coating facility & High Temperature
Curing System

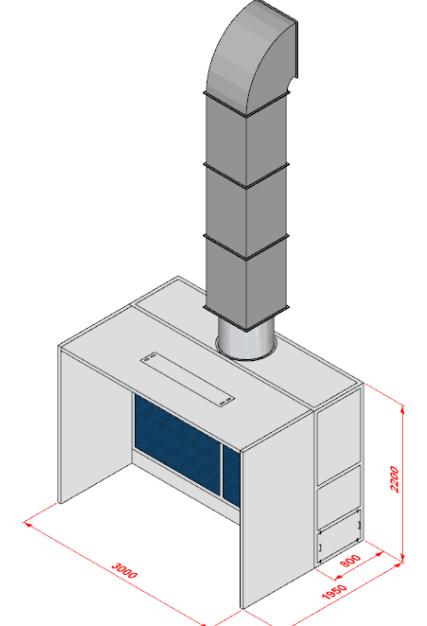

Open Face Spray booth
(Air Brush)

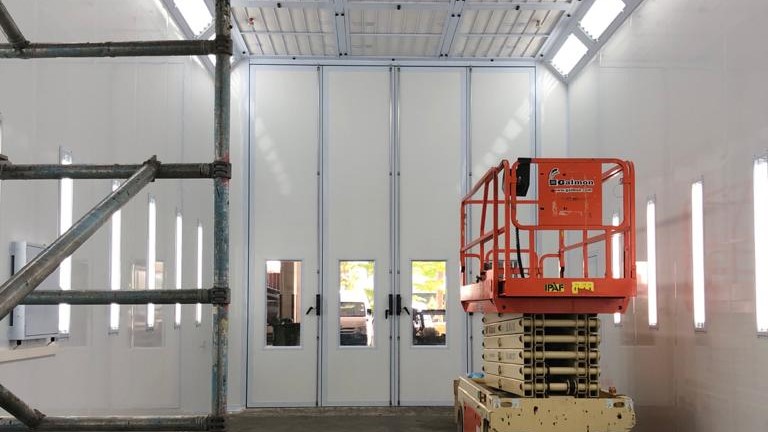

Custom Design Truck
Spray Booth
our services includes

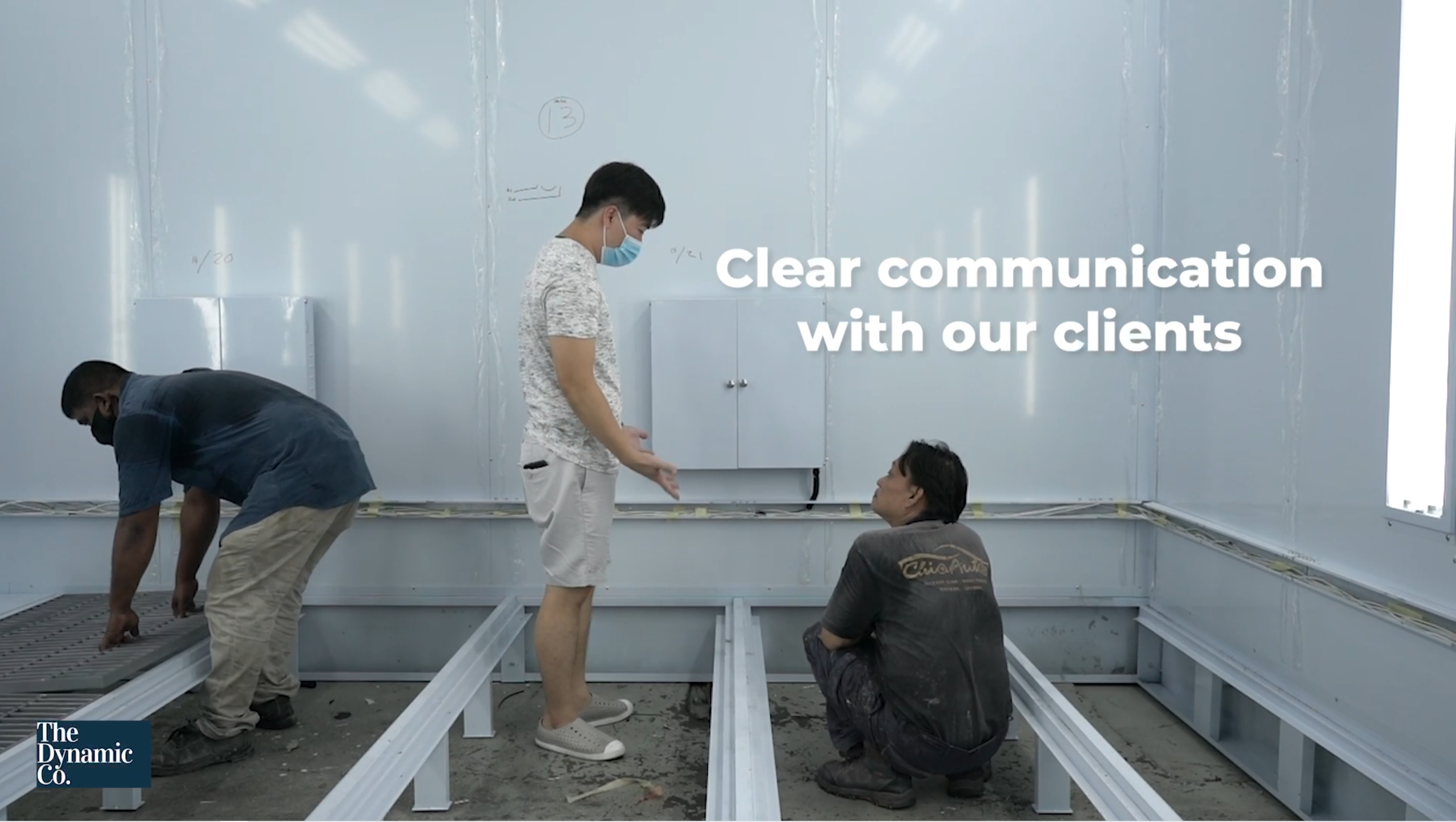

on site measurement
Ensures the right unit is fitted to maximise space usage.
permit application
Permit applications with relevant authorities handled by our team, ensuring a seamless process for you.
local warranty & support
Your spray booth is in trusted hands, we are just a call away.

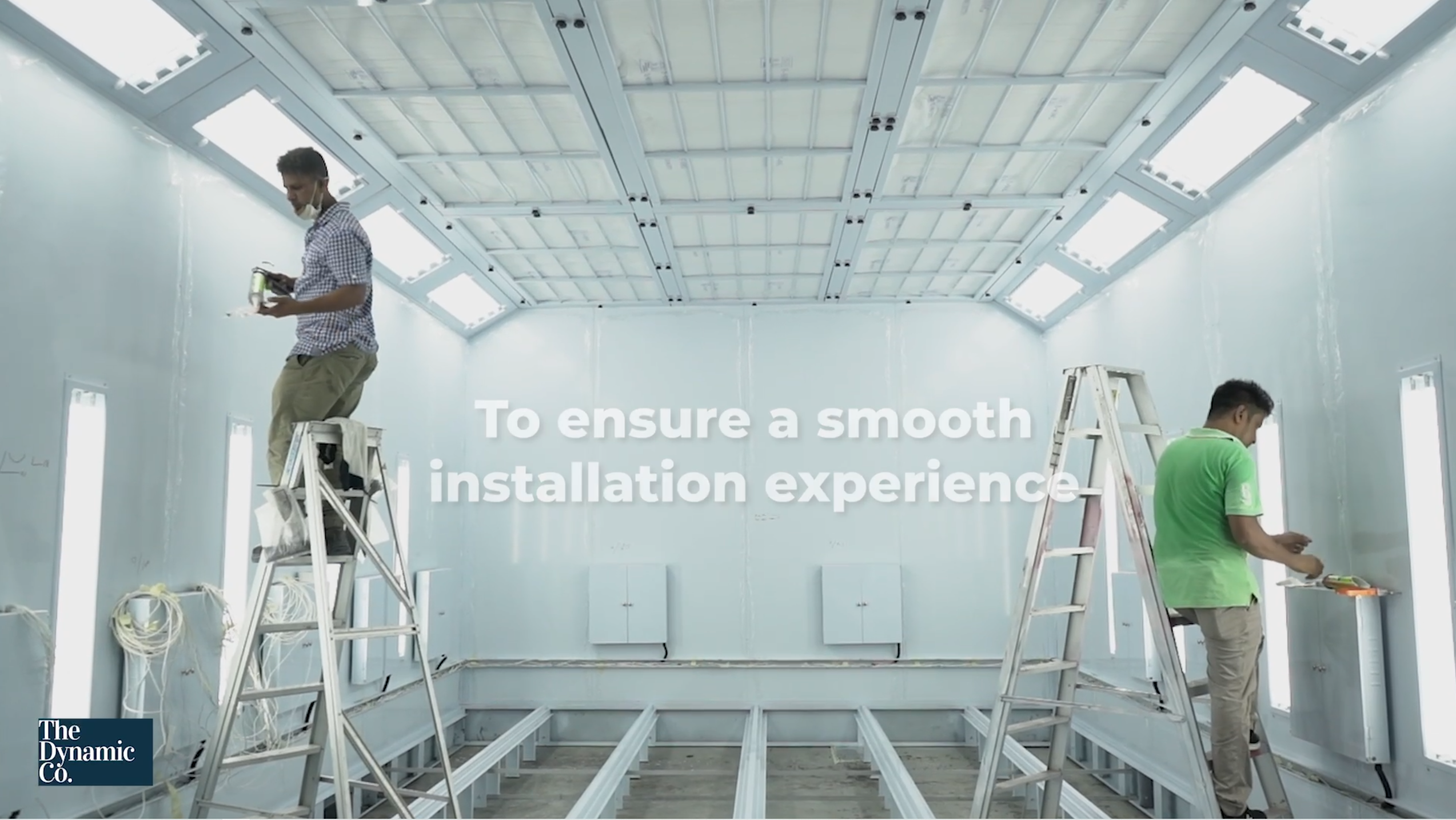

installation and commissioning
From the first meeting right up to the deliverables.
our services includes
on site measurement
Ensures the right unit is fitted to maximise space usage.
permit application
Permit applications with relevant authorities handled by our team, ensuring a seamless process for you.
local warranty & support
Your spray booth is in trusted hands, we are just a call away.
installation and commissioning
From the first meeting right up to the deliverables.
OEM Spray Booth

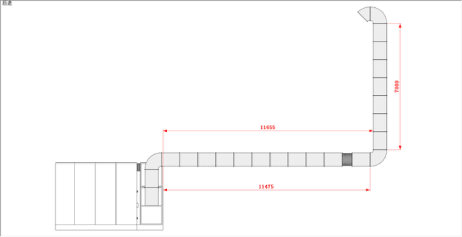

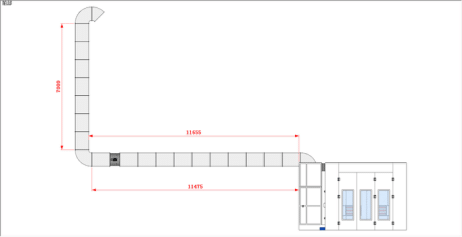

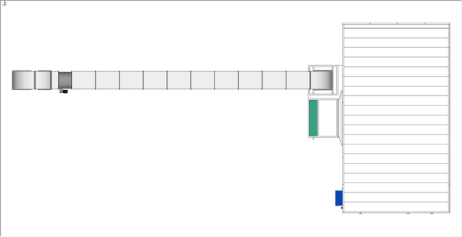

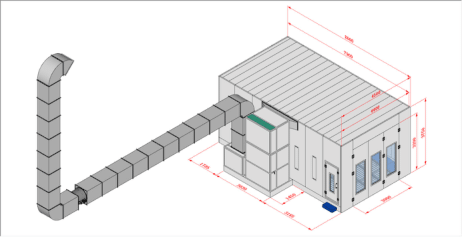

Design drawing of .9x4.4x3 OEM SPRAY BOOTH
Our Works
Portfolio
Specifications
Interested to find out more about our product specifications? Check them out below.
01.
Wallboard

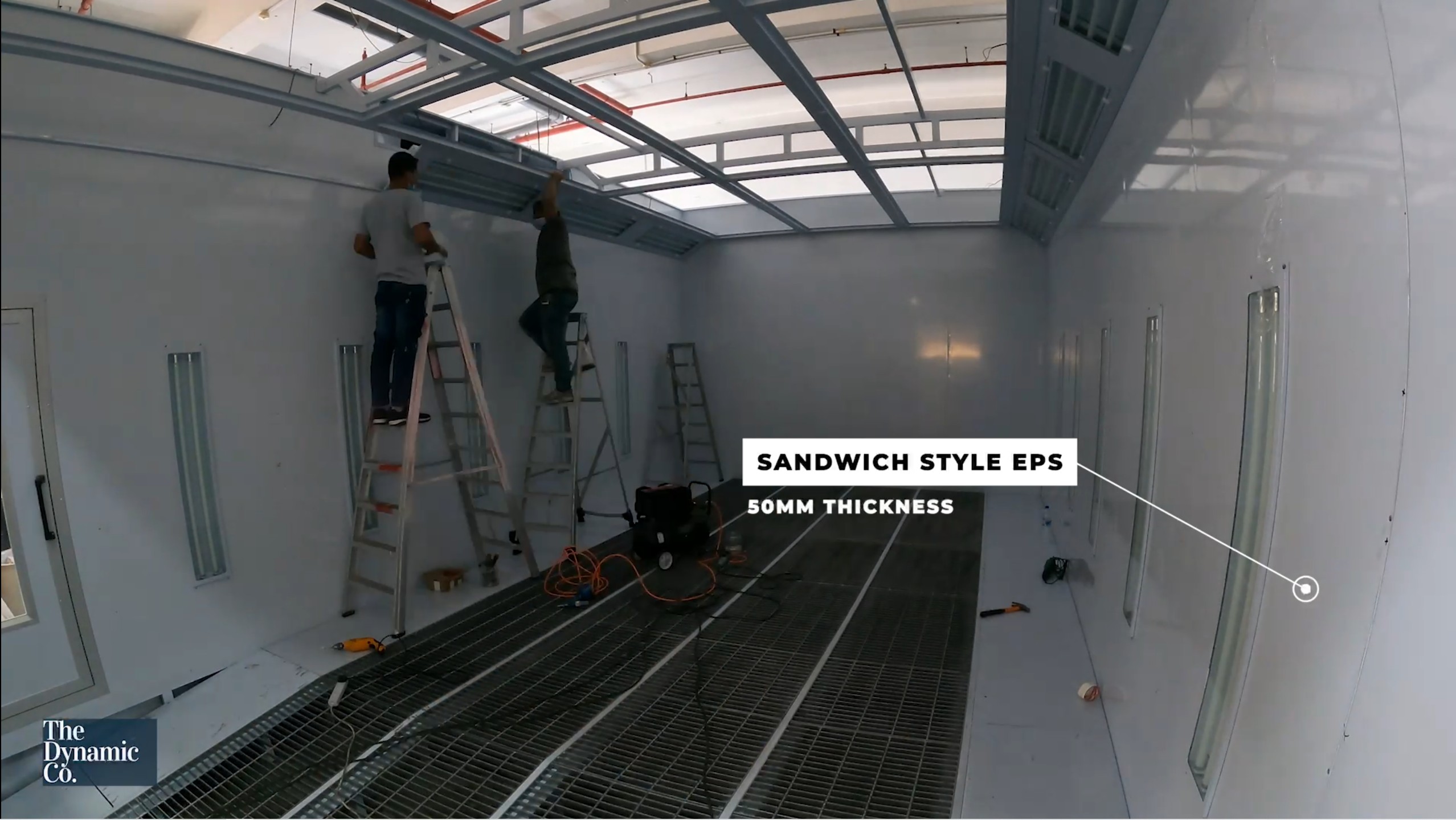

- Sandwich style EPS (epispastics polystyrene) 50mm thickness
- Colorful steel skin boards 0.426mm thickness
- Galvanized steel roof panel
02.

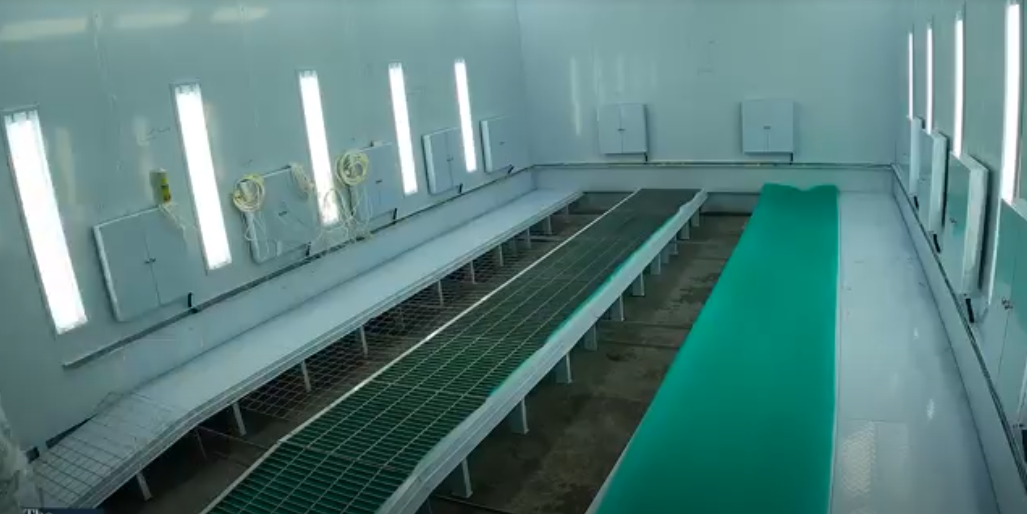

Basement
- Built-in climbing ramps
- Galvanized steel sheet
- Square steel pipe construction
- 2 rows of grids with floor filter
- 3 rows of checkered plates
- 2 pcs of ramps
03.
Air Circulation System
- 2x4kw intake fan
- 1x7.5kw exhaust fan
- BELIMO 20N electric damper
04.
Door

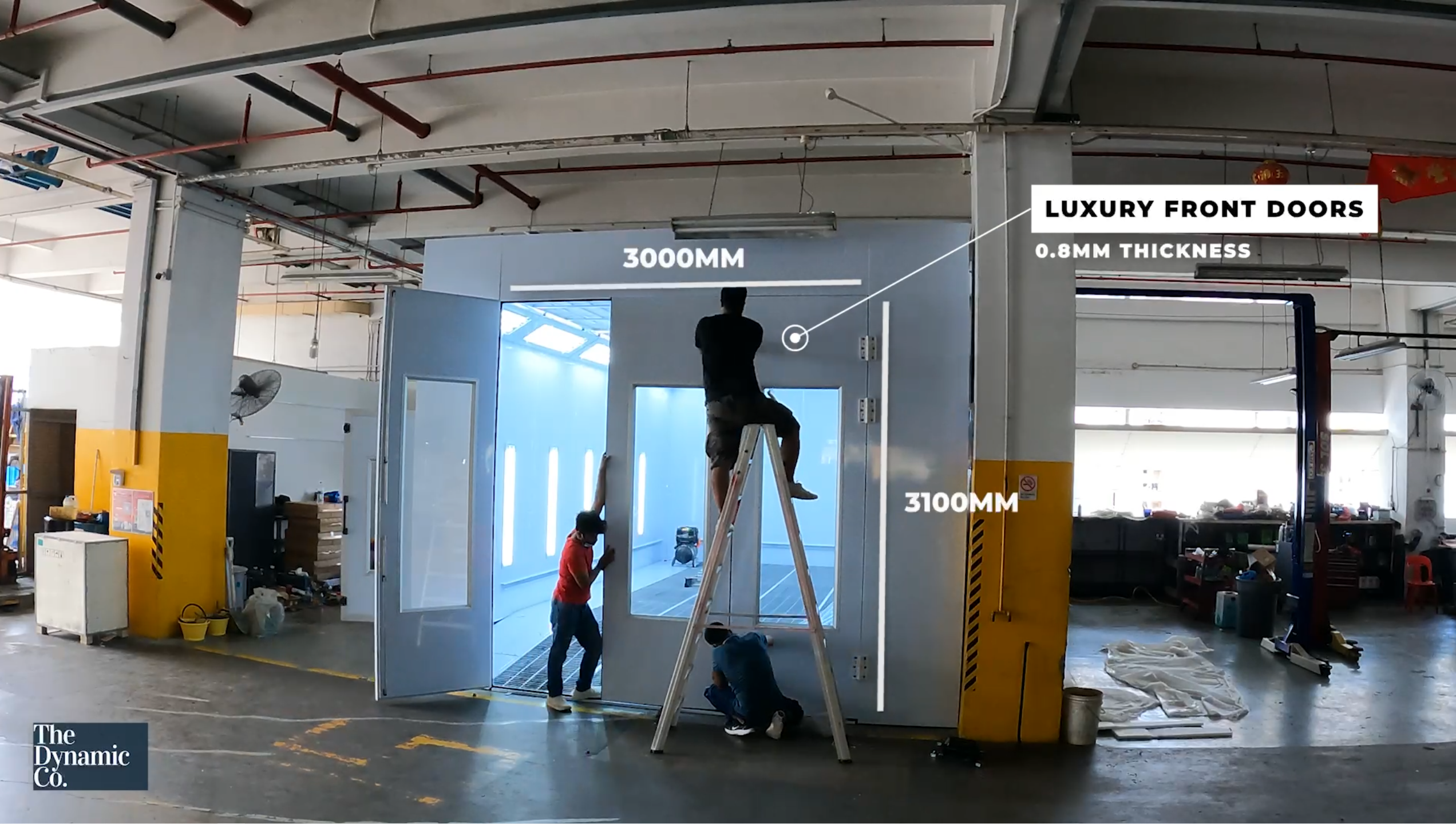

- 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin
- – Size: 3000(w) x 2750(h)
- 1 pc of emergency door
- Watching window with aluminum frame
05.

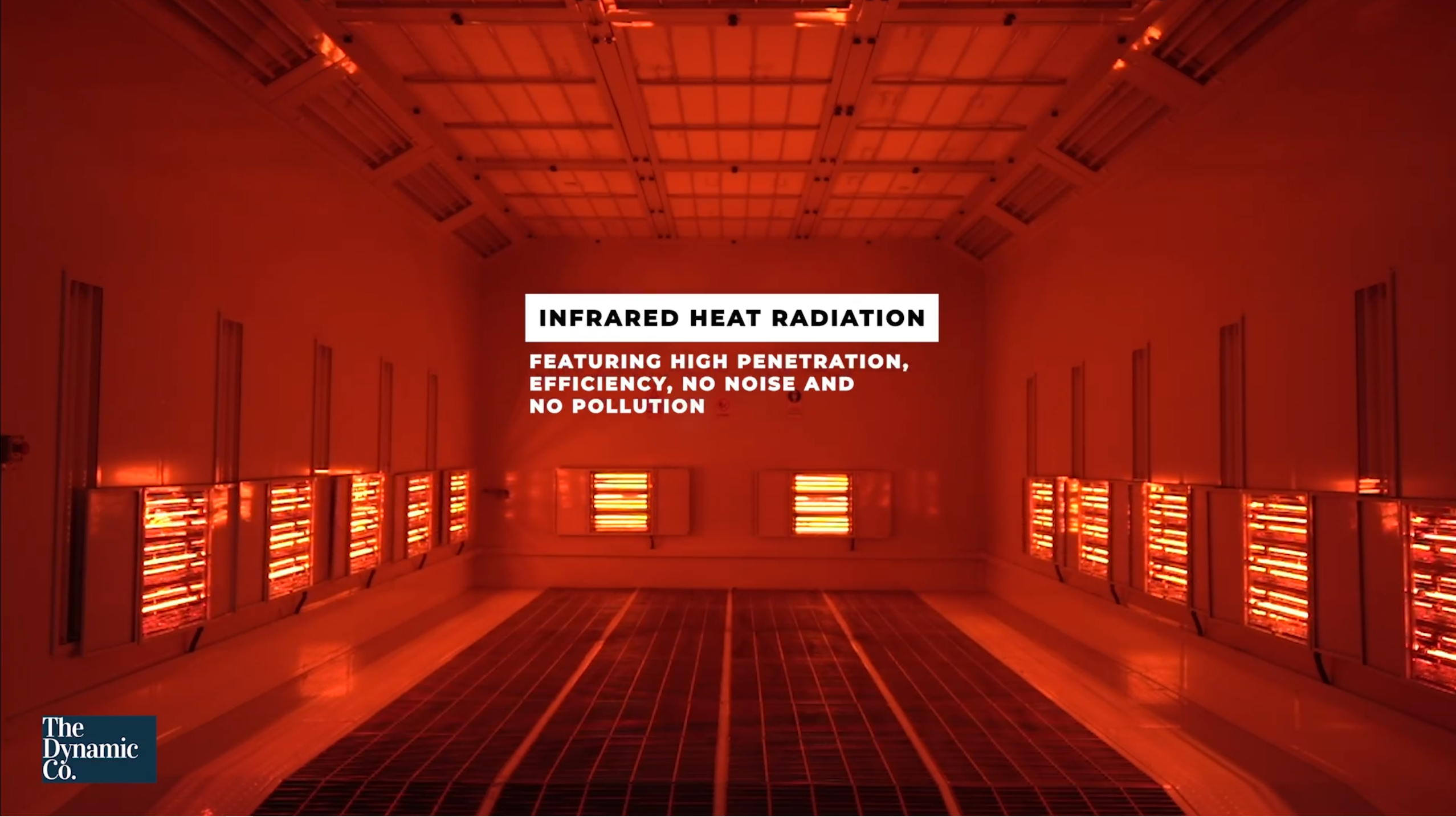

Heat System
- Consist of 10 Sets; Each set have a cover, a stainless steel mirror reflector and 3 tubes, total 30 tubes
- Infrared Heat radiation have a feature of high penetration, efficiency, no noise and pollution free etc
06.

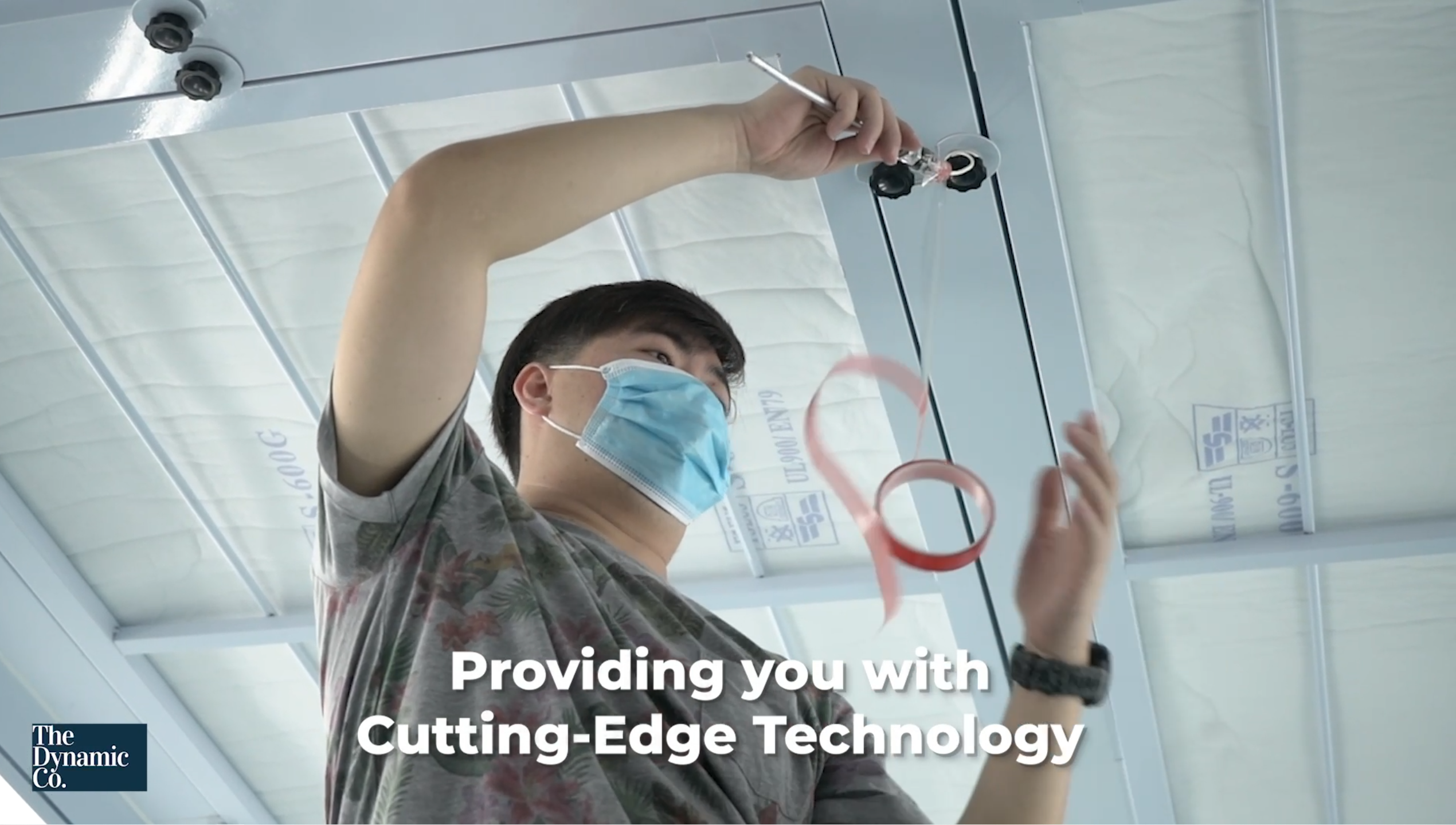

Lighting System
- Ceiling light has 24 pcs of 16w LED lamps
- Side light has 16 pcs of 16w LED lamps
- 900 Lux
07.
Air Purification
- Dual filtering structure
- The primary filter can capture granules larger than 10µm
- Ceiling filter capture granules that are bigger than 5µm
- The air cleanliness in the working environment can reaches 98%
08.
Pollution Control System
- Multi-layer fiberglass filter
09.
Control panel
- Microcomputer control system with a converter.
